SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Condition: New

Dimensions: 610*268*452mm

Efficiency: 85%

Enclosure protection class: IP21S

Feature: Multifunction

High-concerned chemical: None

Insulation class: H

Key Selling Points: Dash ARC patented arc ignition technology

Machine size: 610*268*452mm

Machinery Test Report: Provided

Material / Metal Processed: Carbon steel, stainless steel

Max. Load Power Capacity: 14.5kVA

Motor Type: DC MOTOR

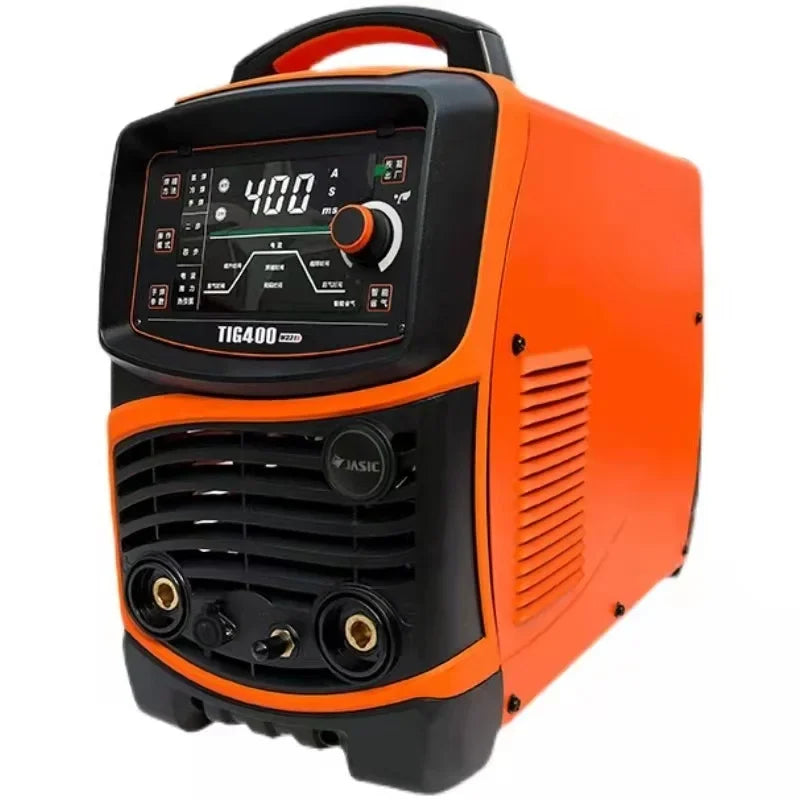

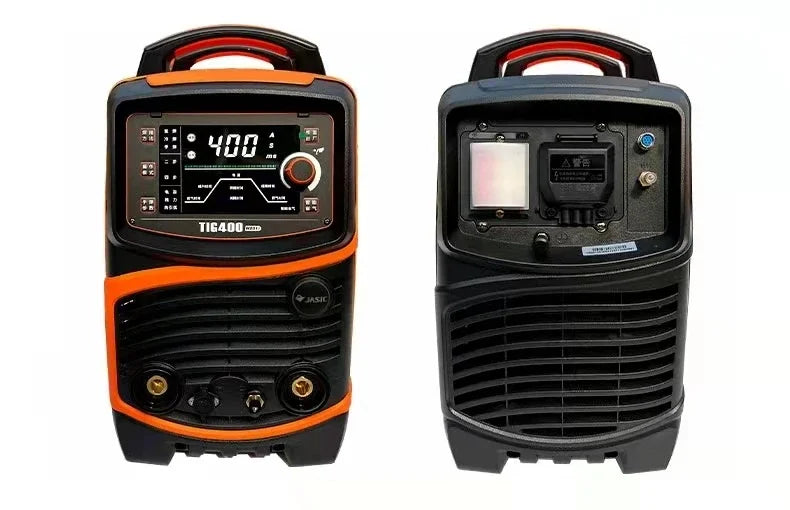

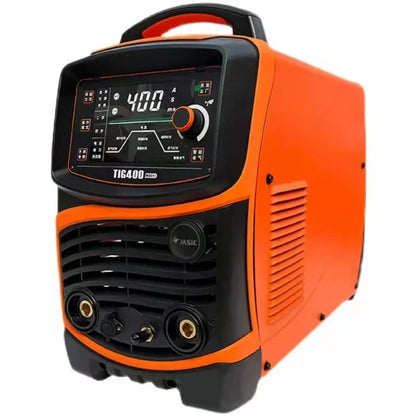

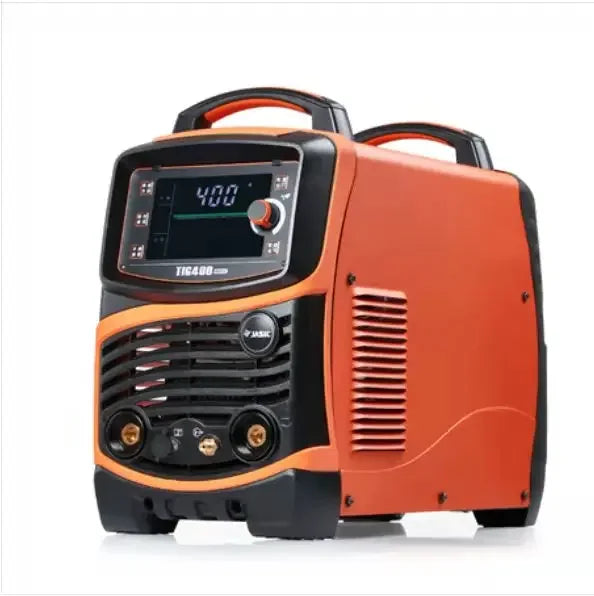

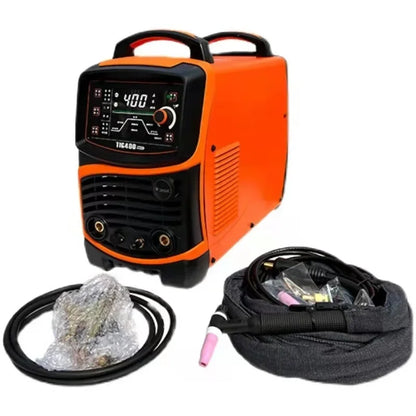

Name: TIG-400

Origin: Mainland China

Output Polarity: DC TIG

Place of Origin: Shandong, China

Power supply voltage(V): AC380±15%

Rated Duty Cycle @40°C (TIG): 30%

Rated Input Voltage: 380 V

Rated Output Current (TIG): 400A

Rated Output Voltage (TIG): 67 V

Rated input current(A): 32

Rated load duration: 30%

Thrust current (A): 0-150

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight (KG): 25 KG

Welding Current/Voltage Range: 10A-400A
